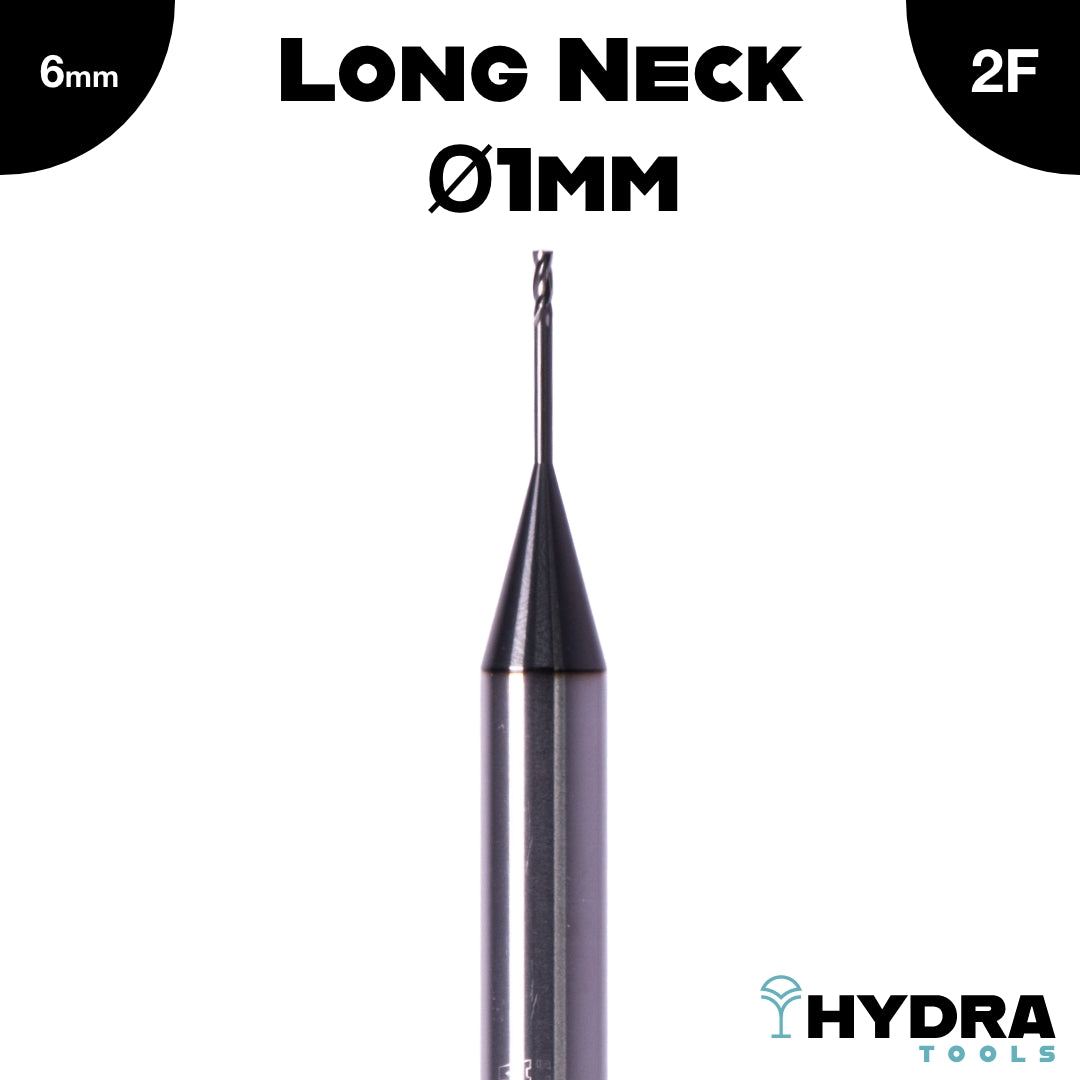

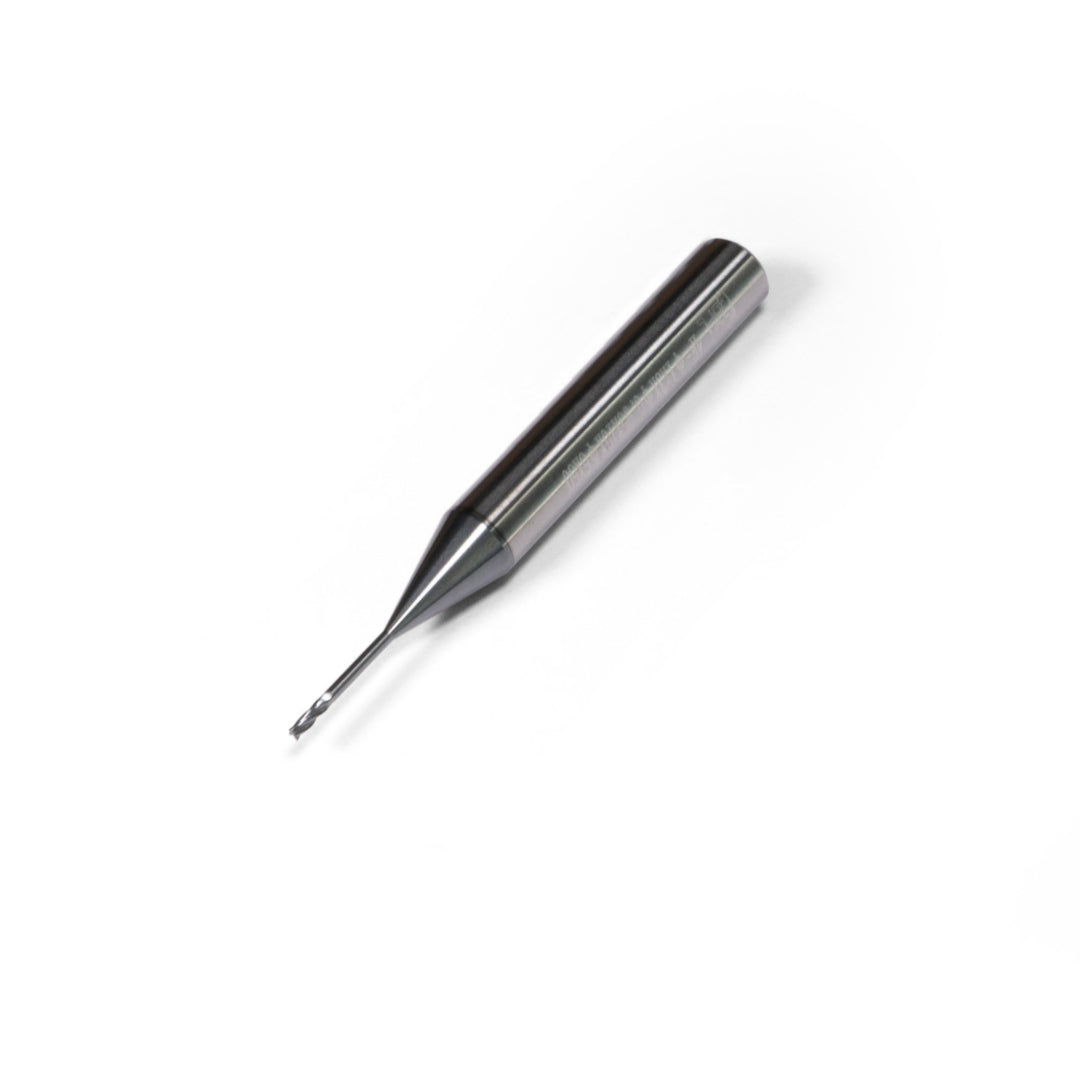

Carbide Long Neck Ø1mm

Designed for precision detail work in deep or hard-to-reach areas, this long neck bit features a 1mm tip for ultra-fine engraving and carving. Made from solid carbide, it’s ideal for delicate cuts in wood, plastics, and soft metals, offering excellent reach and sharpness for intricate projects.

Shank: 6mm | Cut Length: 50mm | Cut Diameter: 1mm

Key Features:

• Tip Diameter: 1mm – allows for ultra-fine detail and tight-radius cuts

• Long Neck: Extended cutting length provides increased reach and clearance for deep pockets or recessed features

• Material: Made from solid carbide to maintain sharpness and resist wear at the fine tip

• Flutes: 2-flute design optimised for chip evacuation and smooth finish

Applications:

• Detailed 3D engraving and carving on wood, plastics, and soft metals

• PCB milling and electronics prototyping

• Fine lettering and inlay work

• Machining deep pockets or recessed areas in moulds or sculptures

Material Suitability:

• Soft to medium-density materials such as hardwood, softwood, acrylic, and aluminium

• Ideal for delicate, low-force cutting to avoid tip breakage

Advantages:

• Enables precision work in tight or deep spaces

• Long neck increases versatility for complex geometries

• Carbide construction ensures durability despite small tip size

• Produces fine detail and smooth finishes on detailed projects

Limitations:

• Fragile tip susceptible to breakage if misused

• Limited material removal rate due to small diameter

• Requires careful speed and feed control to maximize tool life
