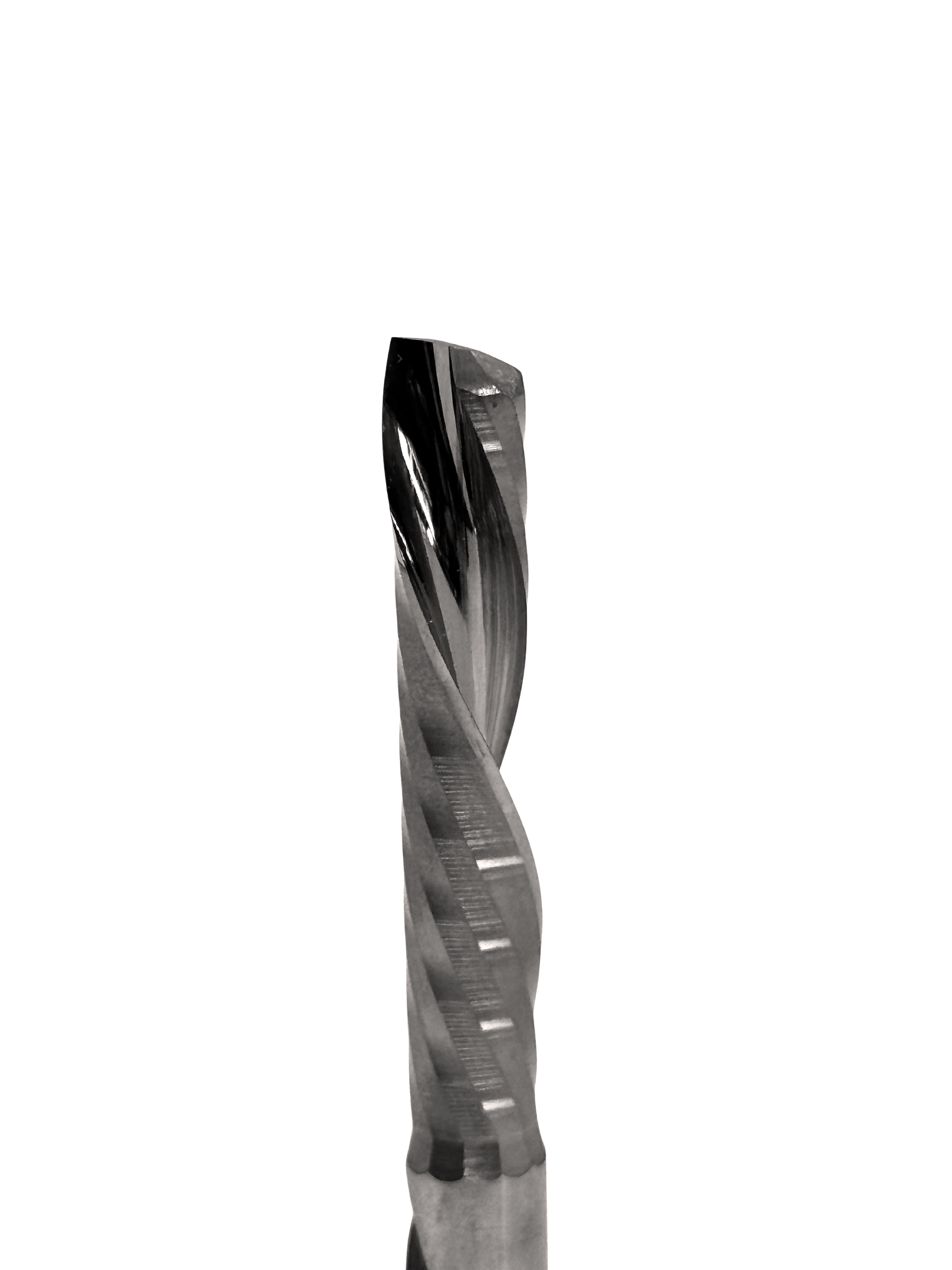

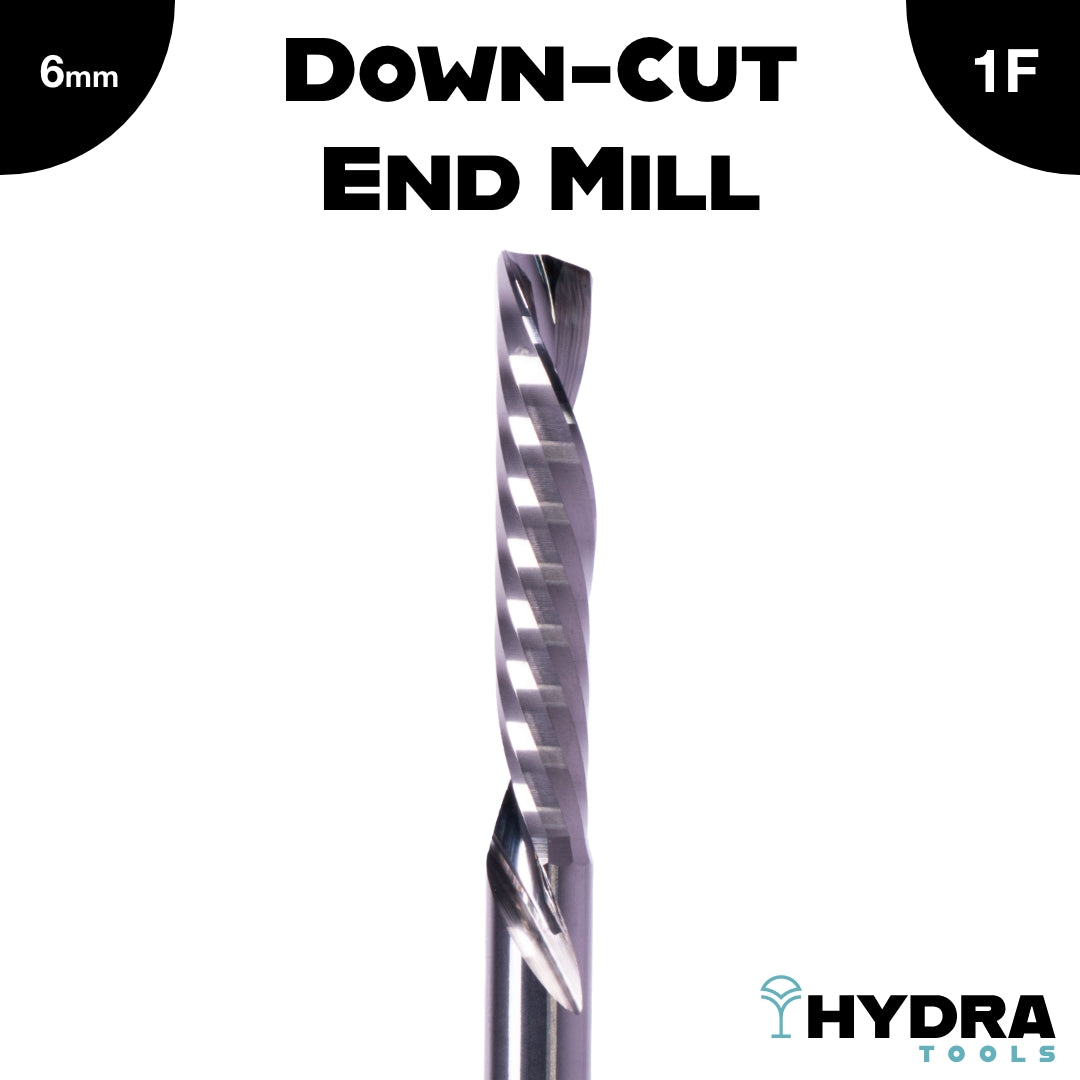

Carbide DownCut End Mill - 1 Flute

Designed to push chips downward, the single flute downcut bit delivers clean, splinter-free top edges—ideal for cutting plywood, laminates, plastics, and softwoods. Its efficient chip removal and smooth finish make it perfect for cabinetry, sign-making, and delicate CNC routing tasks.

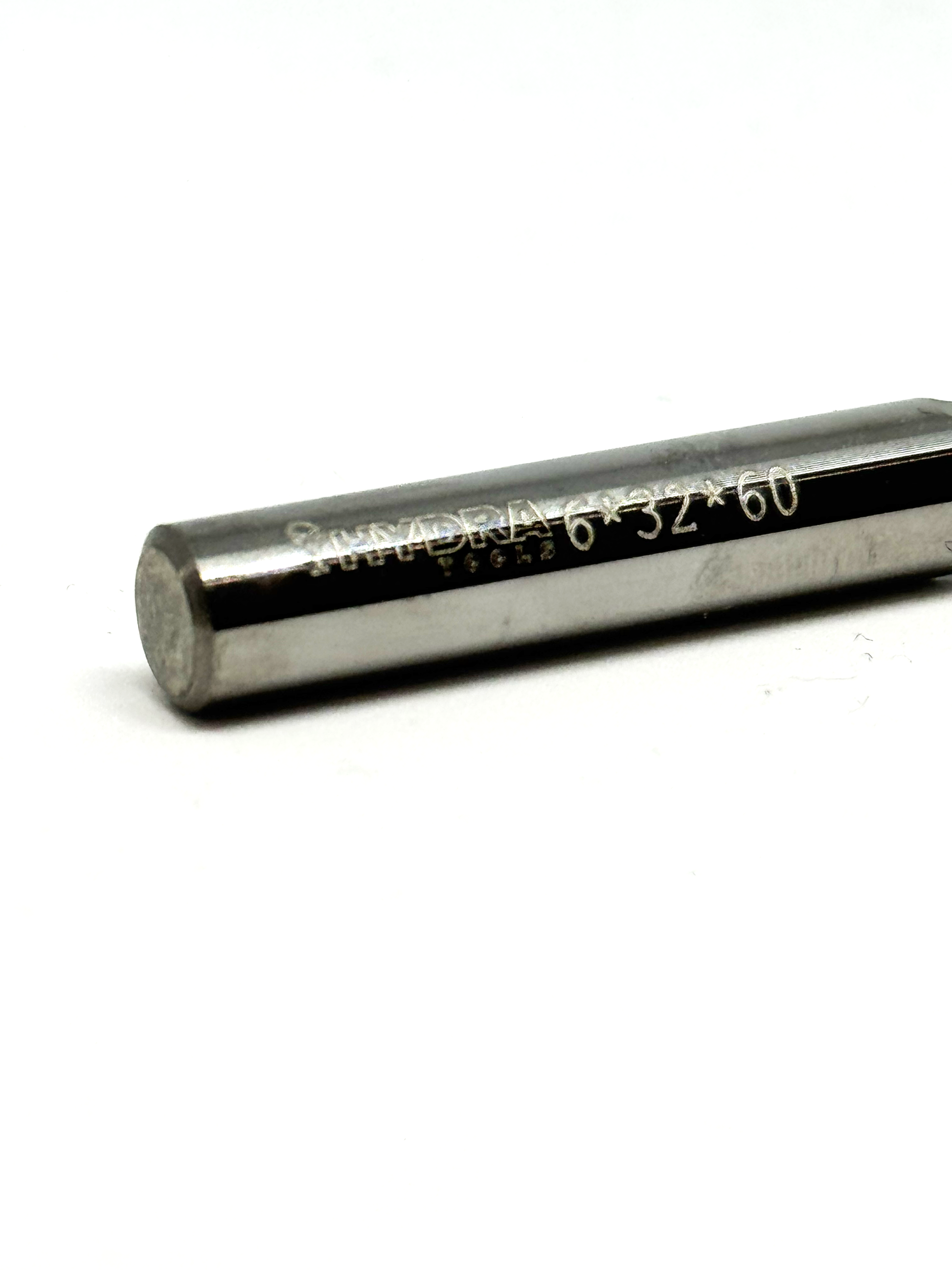

Shank: 6mm | Cut Length: 32mm | Cut Diameter: 6mm

Key Features:

• Flute Design: One flute with a downcut geometry that directs chips downwards.
• Cutting Action: Pushes chips into the cut to minimize top-layer tear-out.
• Material: Made from solid carbide for durability and sharpness.

Applications:

• Plywood
• Laminates
• Plastics (Acrylic, PVC)
• Softwoods and MDF
• Ideal for clean-edge milling where surface finish is critical
• Used in cabinetry, sign-making, and general CNC routing

Material Suitability:

• Best for softer materials with lower cutting forces
• Works well on wood composites, plastics, and soft metals

Advantages:

• Minimizes splintering and chip-out on the top surface
• Single flute design allows for better chip clearance and faster feed rates
• Produces smooth, clean edges on delicate materials

Limitations:

• Not ideal for very hard materials or heavy cutting
• Downward chip flow can cause heat buildup; proper cooling is needed
• Limited to relatively soft or medium-density materials for best results
