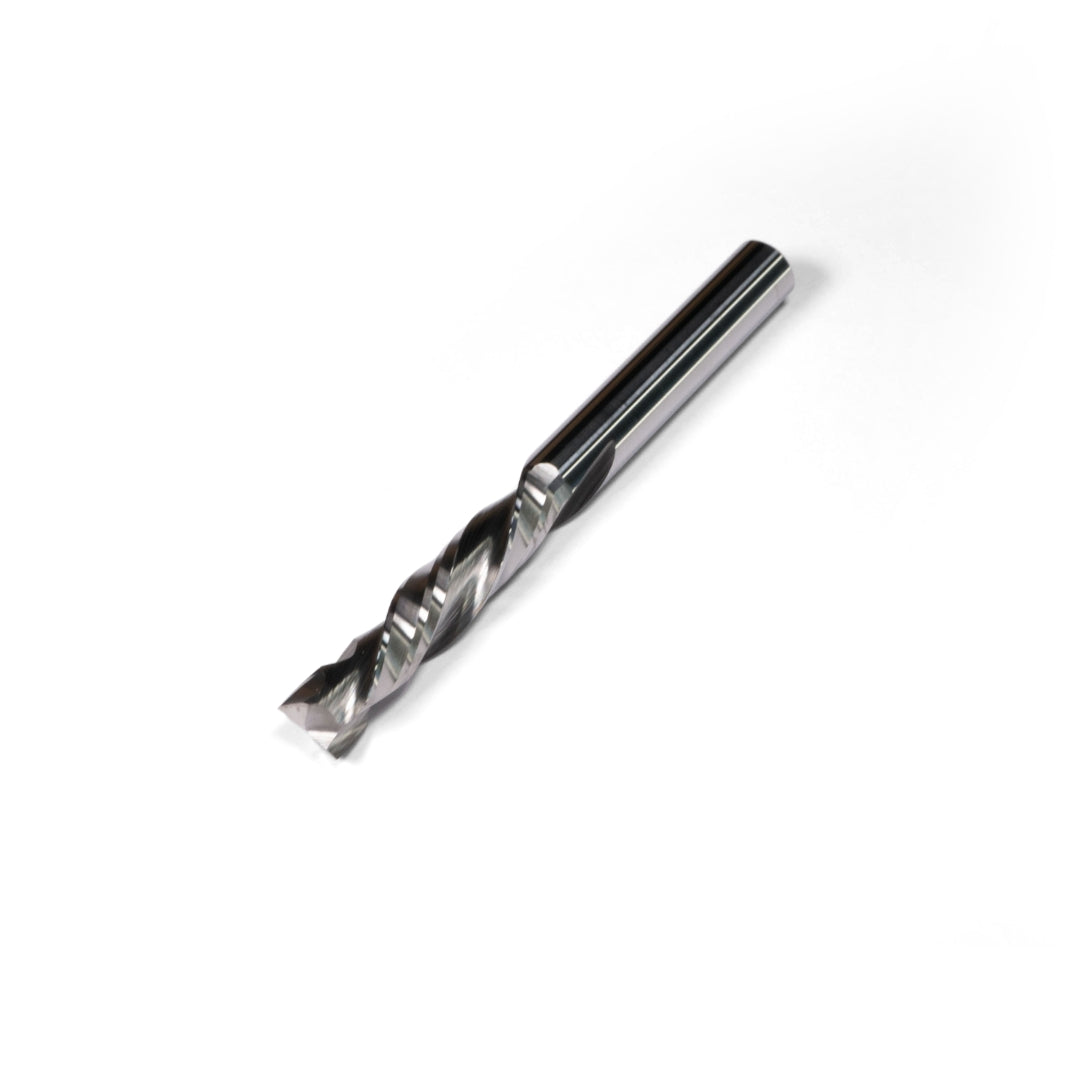

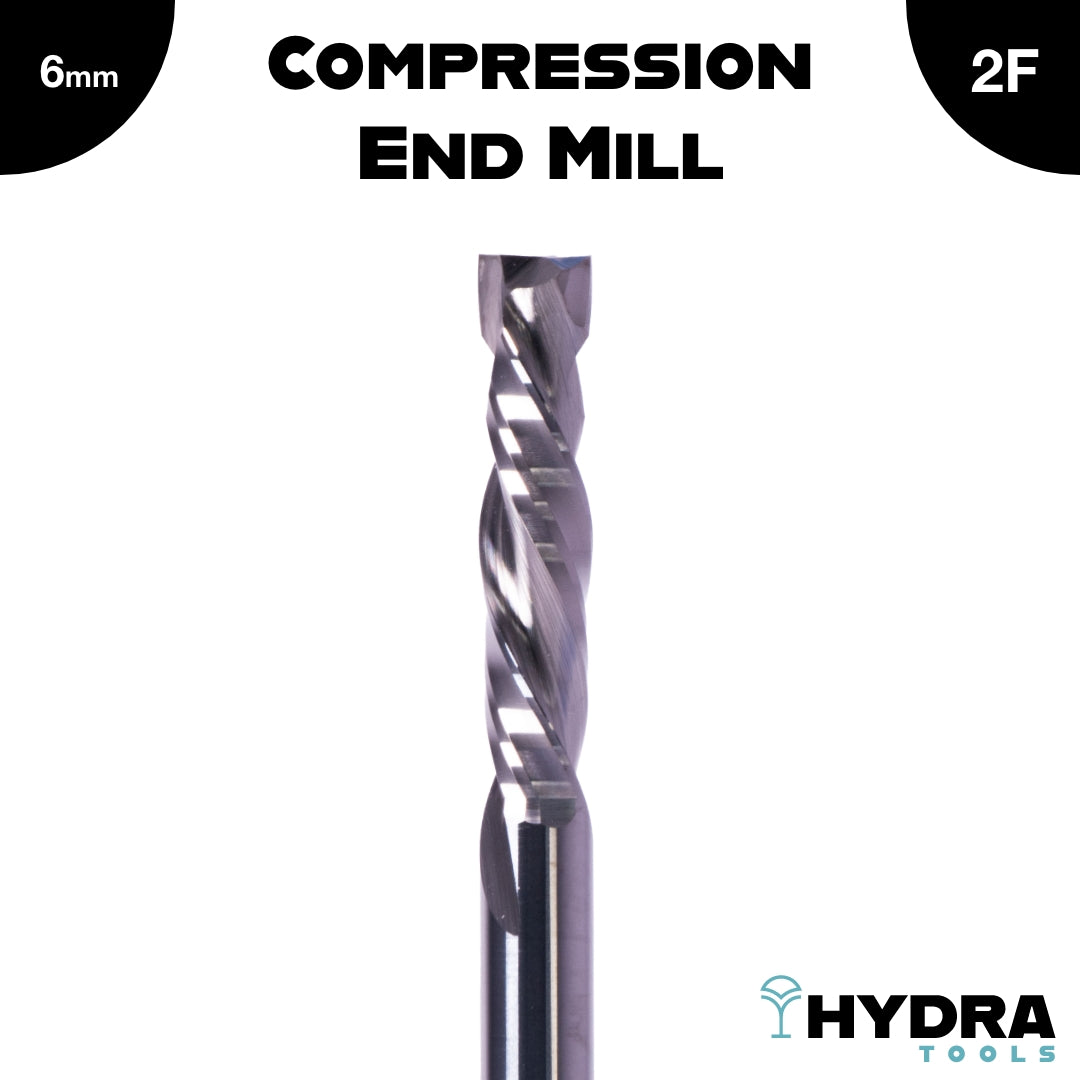

Carbide Compression End Mill

A high-performance CNC bit with a dual-flute design combining up-cut and down-cut flutes. Ideal for clean top and bottom edges on plywood, MDF, melamine, and laminated boards. Made from solid carbide for durability, it’s perfect for through-cuts in cabinet making and woodworking applications.

Shank: 6mm | Cut Length: 28mm | Cut Diameter: 6mm

Key Features:

• Dual-Flute Geometry: Lower section of the bit has an up-cut design to pull chips and fibers upward from the bottom. Upper section features a downcut design to push fibers downward from the top. The point where these meet is called the "transition zone"
• Material: Made from solid carbide for durability and longevity
• Cutting Direction: Designed for full-depth passes so that the transition zone is entirely within the material thickness.


Applications:

• Plywood

• MDF

• Melamine

• Veneered panels

• Ideal for cabinetry, furniture making, signs, and precision panel processing


Material Suitability:

• Works best with:

  • Laminated woods and plywood

  • MDF and particle board

  • Veneered surfaces

  • Some plastics (e.g., acrylic, PVC) with appropriate feeds and speeds


Advantages:

• Clean top and bottom edges – virtually eliminates splintering

• Excellent for high-speed cutting of veneered or laminated materials

• Reduces sanding and cleanup, saving time in finishing

• Great for one-pass cutting on sheet goods


Limitations:

• Must cut deeper than the transition zone to get full compression benefit

• Not ideal for very shallow passes or pocketing.

• Slightly more expensive than standard up-cut/downcut bits

• Can generate more heat; proper chip evacuation is important
